What is a Ball Valve?

A metal seated ball valve is a 90-degree rotational movement valve that utilizes a metal or ceramic ball with an opening through its middle to stop or begin a liquid stream. The ball, displayed beneath in Figure 1, opens and closes to permit liquid course through the ball valve. Whenever the valve handle or stem is gone to open the valve, the ball turns to where the opening in the ball is lined up with the valve body gulf and outlet. At the point when the valve is closed, the ball is turned with the goal that the ball's opening is opposite to the delta and outlet of the valve body, and the stream is halted.

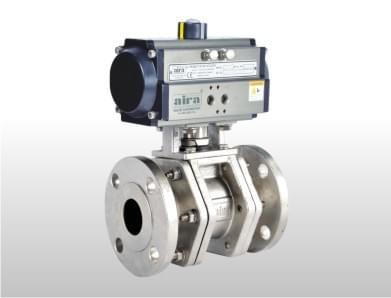

Most ball valve actuators are of the fast-acting sort, which requires a 90° turn of the valve handle or stem to work the valve. Other ball valve actuators are planetary stuff worked manual, electrically worked engines, or pneumatic cylinder type. All actuators give the important working power to open and close valves.

Ball Valve Advantages

A ball valve is in many cases the most economical of any modern valve design and has low support costs. Notwithstanding fast, quarter-turn on-off activity, ball valves are reduced, require no oil, and give tight fixing with low force.

Ball Valve Disadvantages

Regular modern ball valves have moderately unfortunate choking qualities (except for while utilizing a portrayed ball, as displayed previously). A standard ball valve while in choking position will come up short as a result of the impingement of the high-speed stream and the erosive impact on them to some extent uncovered seat.

Ball Valve Port Patterns

Ball valves are accessible in the venturi, diminished, and full port example. The full port example has a great time with a drag equivalent to within the width of the line.

Ball Valve Materials

Balls are generally metallic in metallic bodies with trim (seats) delivered from "delicate" seats alluding to the elastomeric materials utilized like PTFE (100 percent Virgin Polytetrafluoroethylene), RTFE (Reinforced Teflon®), TFM, CTFE, Polychlorotrifluoroethene, Polyether Ether Ketone, and UHMWPE. Care should be utilized in the determination of the seat material to guarantee that it is viable with the materials being dealt with by the valve. Ball valve bodies may likewise be made of different plastic materials for destructive applications.

Ball Valve Stem Design

The stem in a ball valve isn't secured to the ball. It ordinarily has a rectangular piece at the ball end which squeezes into an opening cut into the ball. The development licenses the pivot of the ball as the stem is turned.

Ball Valve Bonnet Design

A hood cap secures the body, which holds the stem gathering and ball set up. Change of the cap licenses pressure of the pressing, which supplies the stem seal. Pressing for ball valve stems is typically in the setup of biting the dust-shaped pressing rings regularly of TFE, TFE-filled, or TFE-impregnated material. Some ball valve stems are fixed through O-rings instead of pressing.

Ball Valve Position

Some ball valves are furnished with stops that grant just 90° revolution. Others don't have pauses and might be pivoted 360°. Regardless of stops, a 90° turn is everything necessary for shutting or opening a ball valve.

The handle shows the valve ball position. At the point when the handle lies along with the pivot of the valve, the valve is open. At the point when the handle lies 90° across the hub of the valve, the valve is shut. Some ball valve stems have a section cut in the top substance of the stem that shows the flow path through the ball. Perception of the score position demonstrates the place of the port through the ball. This element is especially beneficial on multiport ball valves.
