Introduction to Butterfly Valves and Their Applications

An industrial Solution to control all kinds of fluid flow.

· Butterfly Valve

Essentially, the capacity of a butterfly valve is to control the progression of a fluid or gas through a cylinder or line. For the most part, which sort of materials incorporate fluid, steam, gas, and air. Aside from this, a few sorts of dry materials can likewise be gone through these units. In this article, we will discover more about the various segments of butterfly valves and their applications. Peruse on to discover more.

The butterfly valve includes a round circle. The rotate pivot of the plate is toward the streaming material. The parts of the valve incorporate an actuator, stem, disc, seat, and body. Every one of these segments is accessible in various materials known as trim highlights. In light of the application, you need to go for the correct model valve.

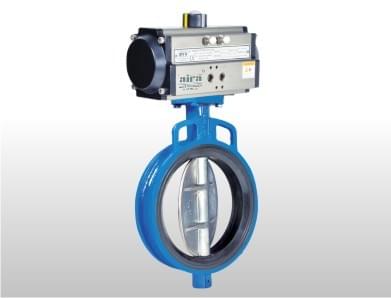

Wafer type Butterfly Valve

Body

The body of the valve is made of various metals like hardened steel, carbon steel, aluminum, malleable iron, cast iron, and colorful metals, just to give some examples. You can discover these units in lug type and wafer type butterfly valve. The last is introduced between pipe spines. The advantage of this kind of valve is that it is significantly simpler to introduce and supplant. However, in the event that you need to go for a substitution, you need to deplete the passing on the line.

The other sort has tapped openings in it that permit you to jolt them to a mating rib. The valve seals the material when the valve is shut.

Seat

Another regular kind of these units is known as the strong situated sort. Within the body of these units is agreed with an extraordinary Elastomer seat. Regularly, these seats are made of White Neoprene, White Buna, Carbon, Characteristic elastic, Cyclobutyl, Teflon, Viton, Buna, and EPDM, just to give some examples. Your decision of the material is reliant on material, pressing factors, and temperatures.

Normally, the seats of some minimal effort units are shaped and can't be eliminated or fixed. By and large, exactness units have removable seats that can be supplanted or fixed.

Plate

The plate part directs the material stream in the passing on line. Aside from this, plate materials are picked dependent on the application. Basic materials incorporate flexible, nickel-plated, epoxy covered, bendable iron, aluminum, and treated steel.

Stem

The stem goes through the valve community, associates with the actuator and changes the plate for an ideal material stream, and afterward stops. In view of the size of the valve and application, stems can be developed dependent on a couple of pieces. By and large, the kind of materials utilized in the development of stems incorporates hardened steel and carbon steel.

Actuator

Actuators are of various sorts, for example, electro-pressure driven, electric, pneumatic, stuff, and manual handle.

Applications

Butterfly valves are intended for a ton of utilizations, like fluid, steam, gas, and air. These units are utilized to deal with materials that are dislodged by the plate. You might need to be cautious when utilizing these units in a grating or semi-rough application.

To put it plainly, this was a depiction of butterfly valves and their applications in various conditions and frameworks.
