Gate Valves And Knife gate valves: isn't one just sharper?

What makes them comparative?

Walworth_forged-steel-gate-valves

Gate and knife gate valves are basically for on/off assistance. Utilizing these sorts of valves to manage stream isn't suggested in light of the fact that when liquid pushes against a to some extent shut gate vibration happens, at last wearing and dissolving the seat and plate. Therefore, these kinds of valves ought to be either totally opened, or totally shut.

These valves are additionally intended to open and close leisurely to shield from the impacts of water hammers.

The two kinds of valves can be found in applications that include:

Slurries

Substantial oils

Non-combustible thick liquids

Wastewater

Clean water

Orbinox_Series_20

What makes them unique?

The contrasts between them are huge. For one thing, indeed, the knife gate valve DOES have a honed circle (thank you kindly). This is intended to cut off any severe solids that might hold the valve back from shutting and making it spill. In any case, there's more that makes their plans very unique.

The greatest contrast between these two kinds of valves is that knife edge gate valve are worked to ANSI norms while knife gate valves hold fast to TAPPI guidelines. Hence, dimensionally the gate valve is more extensive, flanged, and ANSI pressure evaluated. It likewise has API spill snugness guidelines that should be met. They're bi-directional and ordinarily utilized in steam applications just as liquid applications. The gate valve is just accessible with metal seats.

broken image

One more huge contrast between an ANSI gate valve and a knife gate valve is in the pressing organ region.

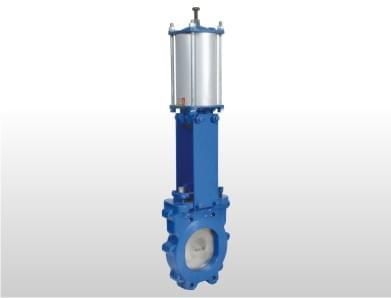

A knife gate has an extremely dainty profile contrasted with its bulkier partner. It's likewise uni-directional (however bi-directional is an alternative on a few), and comes in one or the other wafer or hauled body, no ribs. The seats on the knife gate valve come in everything from metal to strong kinds.

Two of the knife gate's greatest benefits knife are weight and cost. A 16" knife gate valve will regularly weigh under 300# while an ANSI gate valve will be in overabundance of 1200#. The expense of the valve is like the weight contrast also.
