Ball Valve

A ball valve is a rotational movement valve that utilizes a ball-molded plate to stop or begin liquid stream. The ball plays out in a similar capacity as the circle in the globe valve. At the point when the valve handle is gone to open the valve, the ball pivots to a point where the opening through the ball is in accordance with the valve body delta and outlet. At the point when the valve is closed, the ball is pivoted so the opening is opposite to the stream openings of the valve body and the stream is halted.

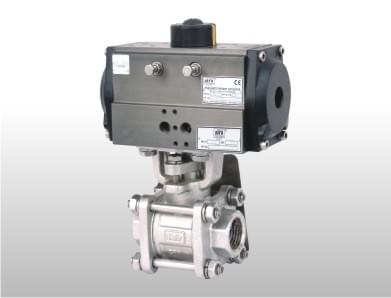

Most ball valve actuators are of the fast acting sort, which require a 90° turn of the valve handle to work the valve. Other ball valve actuators are planetary stuff worked. This kind of outfitting permits the utilization of a moderately little handwheel and working power to work a genuinely enormous valve.

Some ball valve  have been created with a circular surface covered fitting that is out of the way in the vacant position and pivots into the stream entry until it hinders the stream way totally. Seating is refined by the unusual development of the fitting. The valve requires no grease and can be utilized for choking administration.

Traditional ball valves have moderately helpless choking attributes. In a choking position, the mostly uncovered seat quickly disintegrates due to the impingement of high speed stream. There are special cases however, and ball valves can be utilized as control valves when change to describe the stream port are taken.

Some ball valves are furnished with stops that grant just 90° pivot. Others don't have pauses and might be pivoted 360°. With or without stops, a 90° pivot is everything necessary for shutting or opening a ball valve.

The handle demonstrates valve ball position. At the point when the handle lies along the hub of the valve, the valve is open. At the point when the handle lies 90° across the hub of the valve, the valve is shut. Some ball valve stems have a depression cut in the top substance of the stem that shows the flowpath through the ball. Perception of the notch position shows the situation of the port through the ball. This element is especially beneficial on multiport ball valves.
